The UHF Long Range Anti-Metal RFID Tag is specially designed for reliable identification and tracking on metal surfaces. By integrating an optimized on-metal antenna structure, this tag delivers stable performance, long read range, and high durability, even in harsh industrial environments. It is an ideal solution for asset management, warehouse logistics, IT equipment tracking, and industrial applications where standard RFID tags fail on metal.
Pago
Transferencia bancaria, Western Union, PaypalOrigen del producto
Shenzhen, ChinaColor
PersonalizadoPuerto de embarque
Shénzhen, Hong KongPlazo de entrega
7-8 días laborablesMarca
MHMinorador de productos

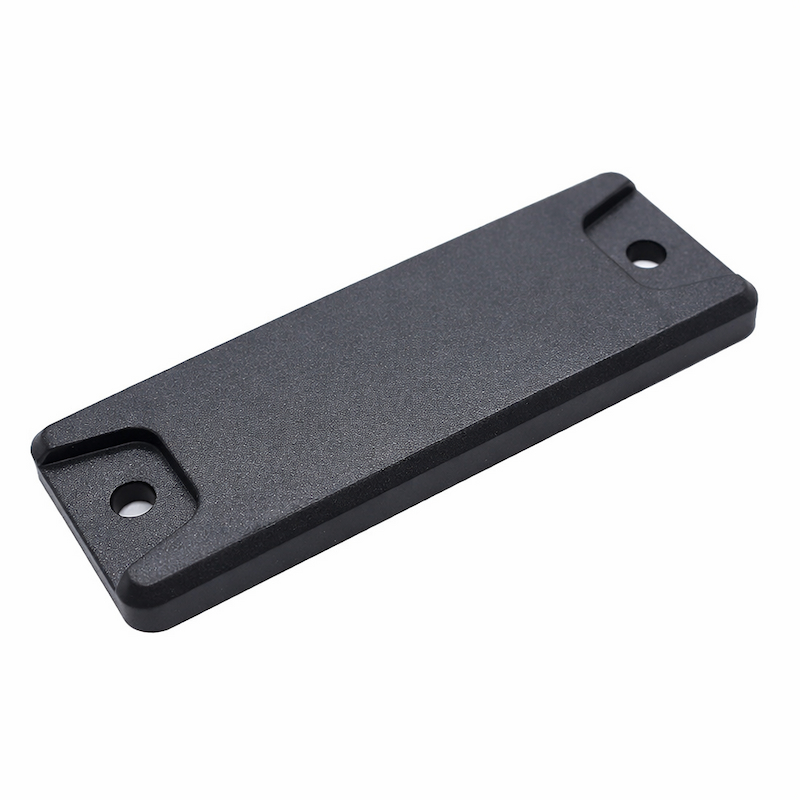

500UHF Long Range Anti-Metal RFID Tag for Industrial Asset Tracking
UHF long range anti-metal RFID tag designed for metal surfaces, offering stable performance up to 15m read range for industrial asset and warehouse tracking.
Key Features
Designed for Metal Surfaces: Engineered to work directly on metal without signal interference or performance loss.
Long Read Range: Up to 10–15 meters read distance when mounted on metal (depending on reader and environment).
Industrial-Grade Durability: Rugged housing suitable for indoor and outdoor use.

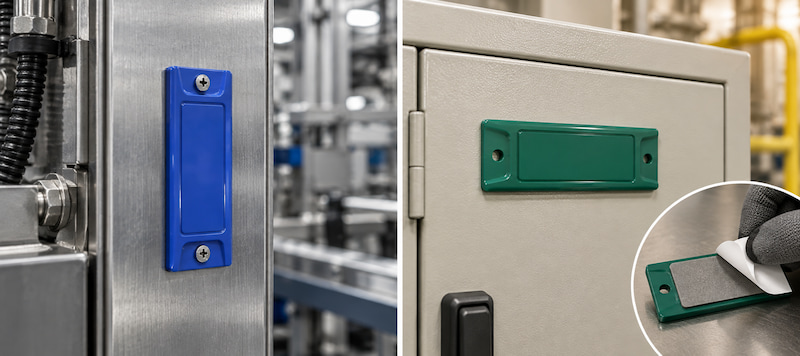

Multiple Mounting Options: Adhesive backing, screw mounting, or rivet installation available.
Wide UHF Compatibility: Fully compatible with EPC Gen2 / ISO 18000-6C standards.
Customizable Options: Size, material, chip, and encoding can be customized for different projects.
Specifications
|
Item |
Specification |
|
Frequency |
UHF 860–960 MHz |
|
Protocol |
EPC Gen2 / ISO 18000-6C |
|
Read Range |
Up to 10–15 m (on metal) |
|
Chip Options |
Alien H9, Impinj Monza R6-P, NXP UCODE (optional) |
|
Material |
ABS / PCB / PET (optional) |
|
Installation |
Adhesive / Screw / Rivet |
|
IP Rating |
IP67 / IP68 (optional) |
|
Operating Temperature |
-20°C to +85°C (custom available) |
|
Data Retention |
10 years |
|
Write Endurance |
100,000 cycles |

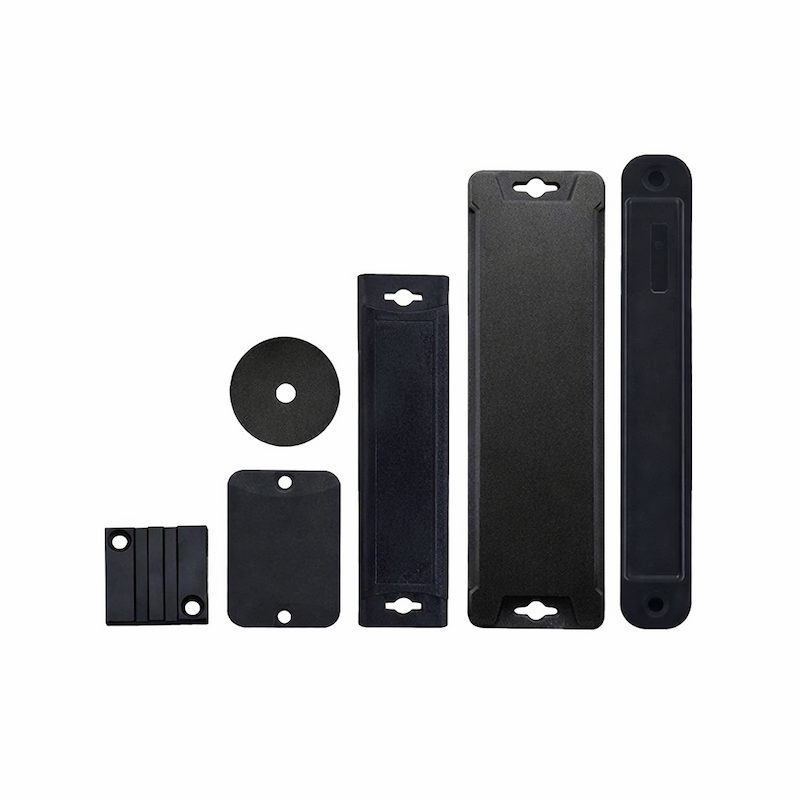

To meet different application requirements, this product can be supplied in multiple versions.
Thin Anti-Metal RFID Tag: Ultra-thin design for IT assets, servers, and electronic devices.
Long Range Hard RFID Tag: Extended read distance for pallets, containers, and warehouse logistics.
Rugged Anti-Metal RFID Tag: IP68-rated housing for outdoor and industrial environments.

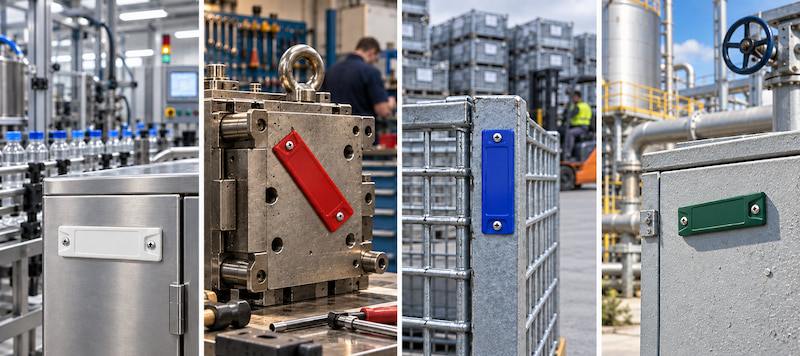

Typical Applications
- Industrial asset management
- Warehouse and pallet tracking
- IT & server equipment identification
- Tool and machinery management
- Vehicle and container tracking
Customization & Services
We provide OEM & ODM services to support your project requirements:
- Logo printing or laser marking
- EPC / TID / User memory encoding
- Custom size and housing
- Chip selection based on reading distance or memory needs
- Sample testing before mass production
Why Choose Us
- Professional RFID manufacturer with years of experience
- Stable quality control and consistent performance
- Flexible customization for B2B projects
- Comptitive pricing and global shipping support
Looking for a reliable UHF anti-metal RFID tag for your project? Contact us today to get samples, technical support, or a customized quotation.
